A resistor is one of the fundamental components in circuits. It limits current flow or divides voltages in the circuit. Although all types of resistors serve the same basic function, different manufacturing methods and materials create distinctions among them. Each type has its unique characteristics suited for specific applications.
Carbon Composition Resistor
A carbon composition resistor is one of the oldest types of resistors. Although we still use it today. Manufacturers mold a mixture of carbon powder and ceramic powder into a cylindrical shape with embedded wire leads. Carbon particles of powder form a network of conductive paths in the ceramic. Ceramic serves as a binder here. The resistance value depends on the ratio of carbon to the insulating ceramic.
Advantages
These resistors offer excellent pulse-handling capability. They can withstand high-energy surges. Obviously, this makes them suitable for applications involving voltage spikes or transient conditions. They can withstand high temporary overloads. Additionally, they can maintain their functionality even after experiencing physical stress.
Disadvantages
However, carbon composition resistors have significant drawbacks. These resistors exhibit poor tolerance levels (typically ±5% to ±20%). Also, they have a high temperature coefficient of resistance. These resistors absorb moisture, which can alter their resistance over time. Their resistance values tend to drift with age. Also, they generate more electrical noise compared to modern alternatives.
Applications
Despite these limitations, they remain useful in vintage equipment restoration, high-voltage circuits, and applications requiring superior surge protection.
Carbon Film Resistor
Carbon film resistors represent an improvement over carbon composition types. Depositing a thin carbon film onto a ceramic cylinder makes the basic structure of this type of resistor. Then a helical groove is cut into the film. This cutting provides the desired resistance value. The groove’s width and depth determine the final resistance.
These resistors offer better stability and tolerance (typically ±2% to ±5%) compared to carbon composition resistors. It generates lower noise. Additionally, it exhibits more predictable temperature coefficients. These resistors are cost-effective to manufacture. This is why these resistors become popular for general-purpose applications. Carbon film resistors work well in consumer electronics, audio equipment, and circuits where moderate precision is sufficient. Their operating temperature range typically extends from -55°C to +155°C. Also, they are available in a wide range of resistance values. While not as precise as metal film resistors, they provide an excellent balance between performance and cost.

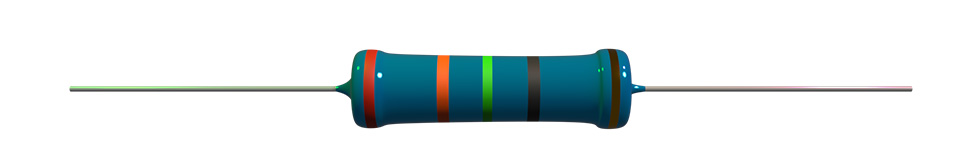

Metal Film Resistor
Metal film resistors are precision components. Deposition of a thin metal layer (typically nickel-chromium) onto a ceramic core gives the basic structure of the resistor. Like carbon film resistors, a spiral cut determines the resistance value. However, the metal film construction offers superior performance characteristics.
These resistors excel in precision applications, offering tight tolerances (±0.1% to ±1%). Also, these resistors have exceptional temperature stability. They generate minimal noise, too. They exhibit a low temperature coefficient of resistance, meaning their resistance remains stable across varying temperatures. Metal film resistors maintain excellent long-term stability with minimal resistance drift over time. Their frequency response is superior, making them ideal for high-frequency applications.
Common applications include precision measurement instruments, audio circuits requiring low distortion, telecommunications equipment, and medical devices. We always prefer these types of resistors for circuits demanding accuracy and reliability, although they cost more than carbon-based alternatives. Normally, metal film resistors are blue. This is one of the identifications for this type of resistor.

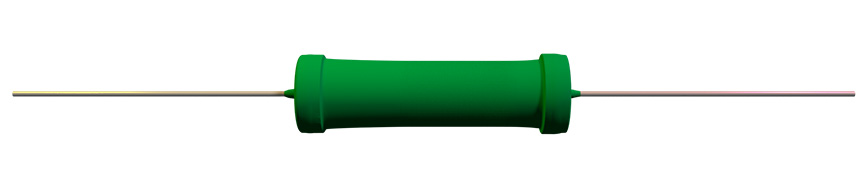

Wire Wound Resistor
These types of resistors are constructed by winding a metal alloy wire (usually nichrome or manganin) around a ceramic, fiberglass, or plastic core. The wire is then covered with an insulating coating such as vitreous enamel or silicone.
These resistors handle the highest power levels among common resistor types. The ratings of these resistors range from a fraction of a watt to several hundred watts. They offer excellent temperature stability, precise resistance values. Also, they have a low temperature coefficient of resistance. A wire-wound resistor can dissipate substantial heat very rapidly. Hence, it makes them invaluable in power electronics applications.
We essentially use wire wound resistors in power supplies, load banks, motor controls, and industrial equipment. However, their wound construction creates inductance, which can be problematic in high-frequency circuits. They are also larger in size. Also, they are more expensive than film resistors. Although special non-inductive type wound versions are also available for applications where inductance must be minimized.
Each resistor type serves distinct purposes in modern electronics, and selecting the appropriate type ensures optimal circuit performance, reliability, and cost-effectiveness.
